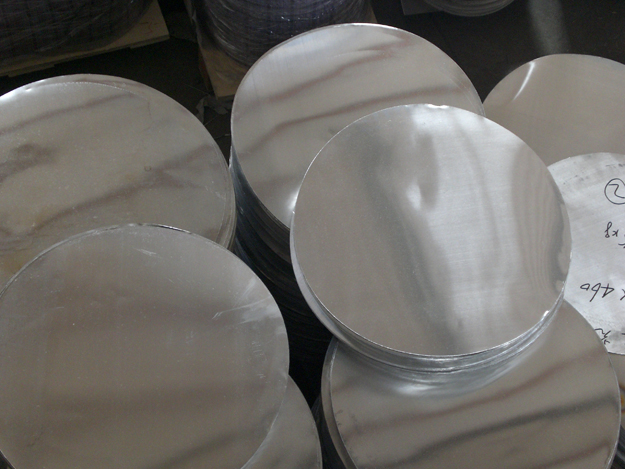

Aluminum Circle

Aluminum circle is also called as aluminum circle sheet, which is a perfect material for making cookware like aluminum pan, aluminum pot, aluminum rice cooker, aluminum cooking utensils, aluminum pressure cooker and so on. Aluminum cookware has the advantages of light wight, durable, low price, heating fast and uniform, no rust and easy to clean, but aluminum circle cookware can not be used to cook acidic, alkaline or salty food. With the specific classification of cookware, aluminum products have more models and application.

Haomei Aluminum is located in famous aluminum capital of Zhengzhou, Henan province. We are professional aluminum manufacturer, mainly produces series-1, series-3, series-5, series-6 and series-8 pure aluminum and aluminum alloy plate/strip/foil products,aluminum strip,aluminum sheet,aluminum plate,aluminum hot rolled plate and aluminum tread plate,such as hot -rolled thick plate, ROPP cap materials, aluminum circle/disc for cookware and lighting, aluminum drilling entry for PCB, aluminum tape for aluminum plastic tube, aluminum baseplate for PS plate, aluminum bright finish tread plate, aluminum circles, aluminum checkered plate, PP cap materails and others.

Haomei Aluminum is both a aluminum circle manufacturer and supplier with 18 years experience. So factory price is available Besides, we use the finest raw material to improve the product quality, guaranteeing the quality of our aluminum Circle lives to national standards. haomei aluminum can manufacture aluminum Circle with many tempers, such as O,H12,H14 etc, and it can be cut to size at customers’ need.

Product Features

• Wide range of selection on aluminum circle' size including customized shape and size.

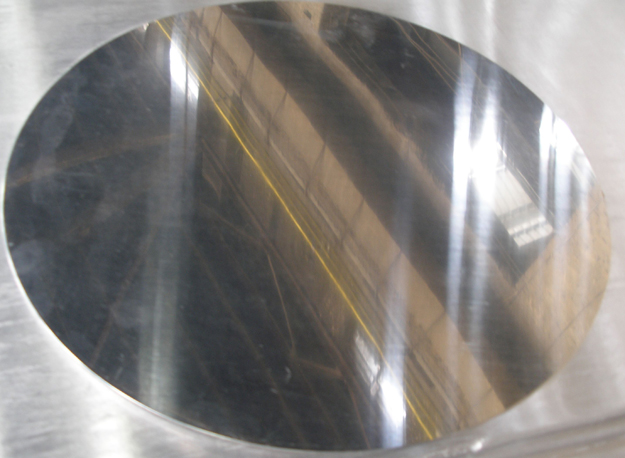

• Excellent Surface Quality for lighting reflectors.
• Excellent deep drawing and spinning quality.
• We provide heavy guage circles with thicknesses up to 6mm thick which is ideal for cookware.
• Anodizing Quality and Deep Drawing Quality which is suitable for cookware as well.
• RoHS and REACH compliance
• Well-Protected Packing

Quality policy

The quality policy of Haomei is to establish, implement, and maintain an effective assurance system based on ISO 9001 with the full participation of all employees in the process of continuous quality improvement and quality assurance practices resulting in total customer satisfaction. By encouraging open communication, we are dedicated to achieve true and sincere partnership with both internal and external customers resulting in total customer satisfaction.

Continuous Quality Improvement

The purpose of our quality system is to continuously improve the quality of our products, our services, and productivity in order to achieve internal and external customer satisfaction.

Product Range

Alloy	Temper	Specification
		Thickness(mm)	Diameter(mm)
1050,1060 1070,1100,3003	O,H12,H14	0.40—6.0	20--1200

Product Properties

TEMPER

THICKNESS(mm)

TENSILE STRENGTH

ELONGATION%

Standard

HO

0.36-6

60-100

≥ 20

GB/T91-2002

H12

0.5-6

70-120

≥ 4

H14

0.5-6

85-120

≥ 2

Product Process

Ingot/Master Alloys --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper --- Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery

Chemical Properties(WT.%)

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ca	V	Ti	Other	Min.A1
1050	0.25	0.4	0.05	0.05	0.05	-	-	0.05	-	0.05	0.03	0.03	99.5
1060	0.25	0.35	0.05	0.03	0.03	-	-	0.05	-	0.05	0.03	0.03	99.6
1070	0.25	0.25	0.04	0.03	0.03	-	-	0.04	-	0.05	0.03	0.03	99.7
1100	0.95		0.05-0.2	0.05	-	-	-	0.1	-	-	-	0.05	99
3003	0.6	0.7	0.05-0.2	1.0-1.5	-	-	-	0.1	-	-	-	0.15	96.95-96.75

Diameter List

≧20	≧140	≧170	≧200	≧250	≧300	≧400	≧500	≧600	≧700	≧800
20	140	170	200	250	300	400	500	600	700	800
25	141	172	203	252	305	405	505	610	705	810
93	142	173	205	254	310	410	510	615	710	838
100	143	175	210	255	312	420	515	619	720	890
105	144	176	211	258	315	425	520	630	730	902
109	145	177	212	260	320	430	525	635	740	945
110	147	178	215	267	325	435	530	645	760	960
112	149	180	216	268	330	440	540	650	770	1000
115	150	181	217	270	335	445	545	655	780	1150
118	153	182	218	272	340	450	550	665		1200
120	154	183	220	274	345	455	560	670
121	155	184	221	275	350	460	565	680
122	157	185	222	277	355	465	570	690
123	158	188	225	278	360	470	575
124	160	190	226	280	364	475	580
127	161	192	230	282	368	480	585
128	162	193	233	285	370	485
129	163	195	235	290	375	490
130	164	198	237	292	380	495
132	165		238	293	385
133	166		240	295	390
134	167		242		395
135	168		245
136	169		249
137
138
139

* Please enquire if you are interested in products outside the above ranges

Diameter Tolerances

	Blanked and Sheared Circle Products
	Thickness(mm)	Diameter Range (D)(mm)
		D <= 455	455 < D <=1000	1000 < D <=1200
	.4 - 6.0	+/-.079	+/-.099	+/-.015
	*The maximun dimension may vary according to individual specifications

Packaging & Delivery

Packaging Details:	Packing: export standard, covering with brown paper and plastic film then packed with wooden case/palletPacking: export standard, covering with brown paper and plastic film then packed with wooden case/pallet such 2-3 tonnes in 1 wooden pallet. Such 18-22 tonnes in 1x20' container.
Delivery Detail:	Within 30 days

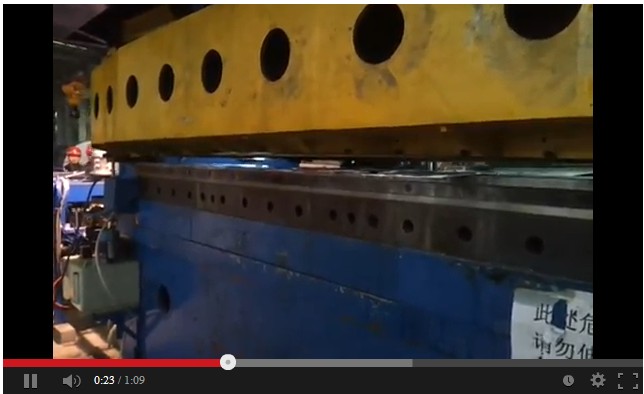

Video

Haomei aluminum circle/aluminium disc production Video in youtube.com

What are the Advantages of Ordering aluminum circles Online?

The first advantage when ordering aluminum circles online is convenience. In the past, when we ordered products, we usually need to find a expert manufacturer. After understanding and judging in the field, we will know the quality of the company's products and whether the company is reliable. But now is different, through the help of network we can quickly to the enterprise product and the enterprise related information carries on the detailed understanding.

In addition, when ordering aluminum circles online, the price will be relatively affordable. Many companies will give buyers a certain amount of discount in the process of selling products online, in order to better serve the buyers, and hope to establish a good brand image. It is precisely because of this in the online ordering of products on the advantages of the more obvious. So, if you need to order a large number of aluminum circles and you have trouble ordering them, don't know what to do, try online ordering, and I'm sure you won't be disappointed.
